The TCTemp2000 is a thermocouple-based temperature data logger with LCD for real-time monitoring. Includes standard calibration certificate.

MADGETECH TCTEMP2000

在线购买：

详情
参数
下载
其他

详情

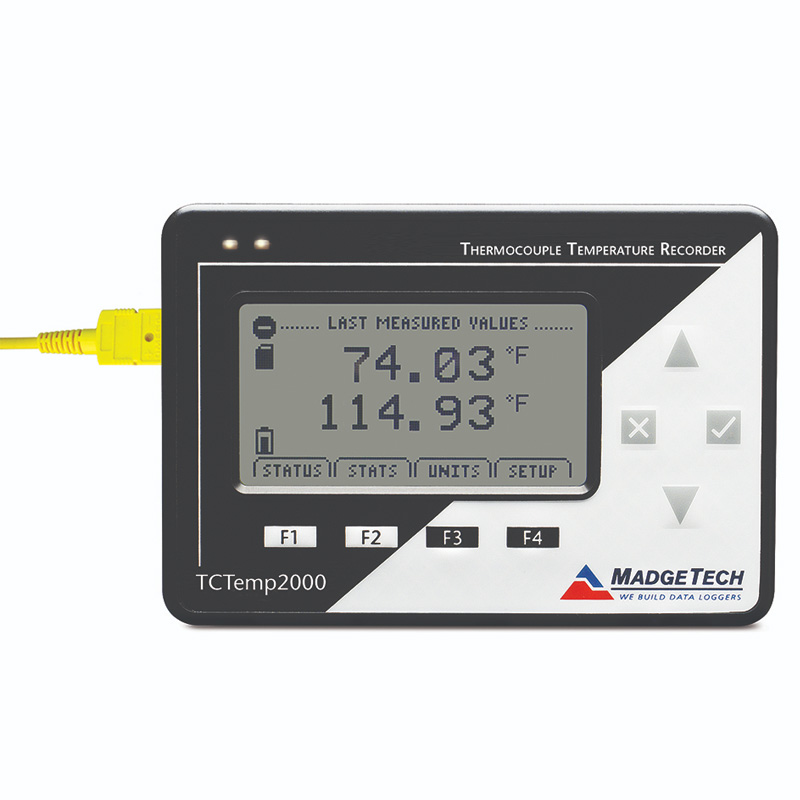

The TCTemp2000 is a thermocouple-based temperature data logger with LCD and wall mounted power adapter.

The 8-button keypad and LCD provide convenient access to current statistics (min, max, average), recording status, display options and calibration information. The TCTemp2000 can be programmed to start up to 6 months in advanced with a storage capacity of 262,143 time and date stamped readings.

The TCTemp2000 is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.

Thermocouple probes sold separately.

参数

Memory	131,071 readings (all channels enabled)
Reading Rate	1 reading every 2 seconds to 1 reading every 24 hours
Baud Rate	262,143 readings
Cold Junction Compensation	Automatic, based on internal channel
Battery Life	1 year battery life at 1 min reading rate with display off. 30 days typical with continuous LCD and no backlight usage. Optional AC Adapter available.
Material	Black anodized aluminum
Dimensions	4.8 in x 3.3 in x 1.25 in (122 mm x 84 mm x 32 mm)
Operating Environment	-20 °C to +60 °C (-4 °F to +140 °F), 0 %RH to 95 %RH non-condensing
Required Interface Package	IFC200
Approvals	CE

Temperature

Internal Channel Temperature Sensor	Semiconductor
Internal Channel Temperature Range	-20 °C to +60 °C (-4 °F to +140 °F)
Internal Channel Temperature Resolution	0.1 °C (0.18 °F)
Internal Channel Temperature Calibrated Accuracy	±0.5 °C (0 °C to +50 °C)
Remote Channel Temperature Sensor	Thermocouple Types J, K, T, E, R, S, B ,N
